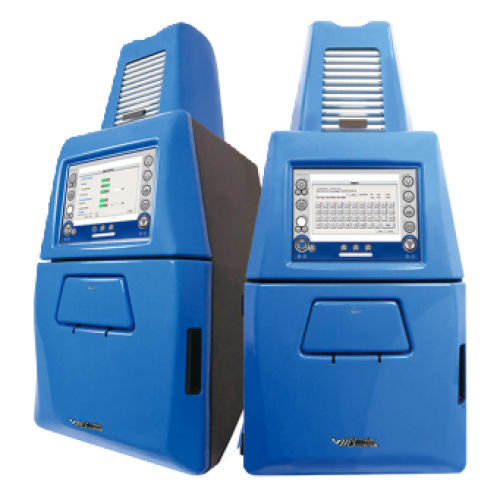

SmartView Pro Imager UVCI-2300/2400
-500x500.png "SmartView Pro Imager UVCI-2300/2400")
- Product Code: Major Science
Product Introduction
MS UVCI-2300/2400, the truly standalone Gel Imaging System, delivers incredible image and sharpness with power of the exceptional close-up monochrome 2.0 mega-pixel CCD camera, and get you ready for beautifully discriminable DNA/Protein gel images in the spaciously intuitive 10.4” interface with color touch-screen. Our innovative systems are expandable with white and blue light plates coupled with versatility of camera Filters, no matter it’s an EtBr or EtBr-free operations, simply tab to view. Many post-imaging features like drawer-type platform and UV Protection Shield are added to your convenience for gel excision.
|
|
|
|
Viewing via window |
Viewing via screen |
|
|
|
|
Viewing window |
White light plate |
|
|
|
|
Blue light plate (UVCI-2300) |
A.White light plate (Flip type)
B.Blue light plate (Flip type)
C.UV transilluminator (Drawer type)
|
Features:
- Standalone gel doc system with high-quality monochrome CCD
- Exchangeable emission Filters provide for instant visualization
- Intuitive 10.4” interface with color touch-screen
- Zoom-able lens for proper picture size
- Movable platform for gel excision with UV-protection shield
- Automatic UV shut off mechanism (UVCI-2300 only)
- Optional trans white light and blue light plates (UVCI-2300 only)
- Exclusively designed for EtBr-free operation gel doc system (UVCI-2400 only)
- Optional trans white light plates
Specifications
|
Model |
SmartView Pro 2300 |
SmartView Pro 2400 |
|
Cat. No. |
UVCI-2300 |
UVCI-2400 |
|
Camera |
1/1.8" interline UXGA monochrome progressive 2.0MP CCD |
|
|
Pixels size |
4.4μmx4.4μm |
|
|
Lens (camera) |
F1.2, 12.5 – 75mm (with one +1 close-up lens), 6X zoom lens, manual |
|
|
Camera video output |
12bit |
|
|
Filter (camera) |
Optical EtBr Filter / Optical SYBR Green Filter /
Orange Amber Filter
*Ordered Separately
|
Orange Amber Filter
*Ordered Separately
|
|
Image storage |
Built-in 14GB Memery (3000 tiff images storage) and USB flash |
|
|
Cabinet |
Pull out, sliding transilluminator |
|
|
Field of view(WxL) |
10.24"x8.26" (260x210mm) |
|
|
Dimension (WxLxH) |
16.1"x15.9"x36" (410x405x915mm) |
|
|
Weight |
Approx. 62.8lbs. (28.5kg) |
Approx. 56lbs. (25.4kg) |
|
Display |
10.4” color touch screen, 800x600 |
|
|
Viewing window |
Built-in UV viewing window |
Built-in blue viewing window |
|
Window Filter |
Amber Filter embedded in viewing window (580nm) |
|
|
Light source |
Built-in drawer type UV Transilluminator 312(302)nm |
Built-in drawer type blue transilluminator 470nm |
|
Epi white light |
||
|
Optional accessory |
White Light Plate (power built-in) |
|
|
Blue light plate (power built-in) 470nm |
N/A |
|
|
Saved image |
Max. 16bit |
|
|
Grayscale |
12bit, 0-4095 gray levels |
|
|
Safety |
CE, FCC |
|
|
Rated voltage |
100-240V~, 50/60Hz |
|
Accessories
| Cat. No. | Product Description |
| UVCI-2300-EB | SmartView EtBr Filter, 610nm (for UV) |
| UVCI-2300-SG | SmartView SYBR Green Filter, 520nm (for UV) |
| UVCI-2300-F4 | SmartView Amber Filter, 580nm (for blue light) |
| UVCI-2313 | SmartView Pro UV Protection Shield, for 2300 series |
| UVCI-2314 | SmartView Pro Lens Filter Stand, can hold up to 4 lens filters, for 2300 & 2400 series |
| UVCI-2300-BL | Blue Light Plate for SmartView Pro 2300 series |
| UVCI-2300-WL | White Light Plate 21x26cm for SmartView Pro 2300 & 2400 series |
| MJC-8-STYLUS-00000 | Stylus Pen |
UVCI-2300-EB
UVCI-2300-SG
UVCI-2300-F4
UVCI-2313
UVCI-2314
UVCI-2300-BL
UVCI-2300-WL
MJC-8-STYLUS-00000
